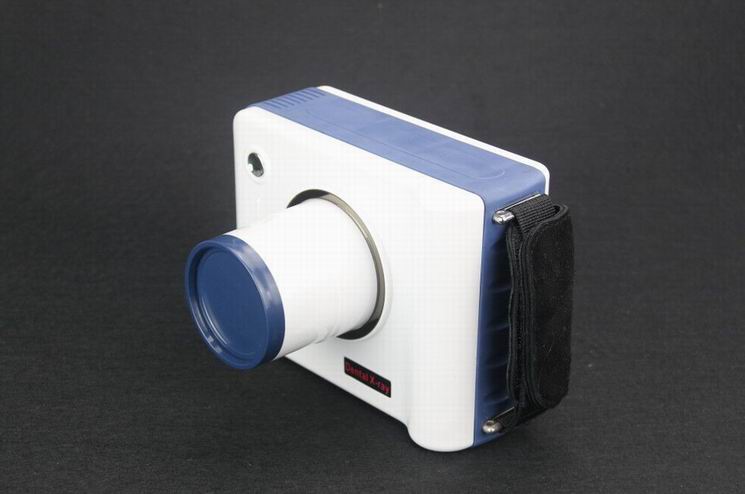

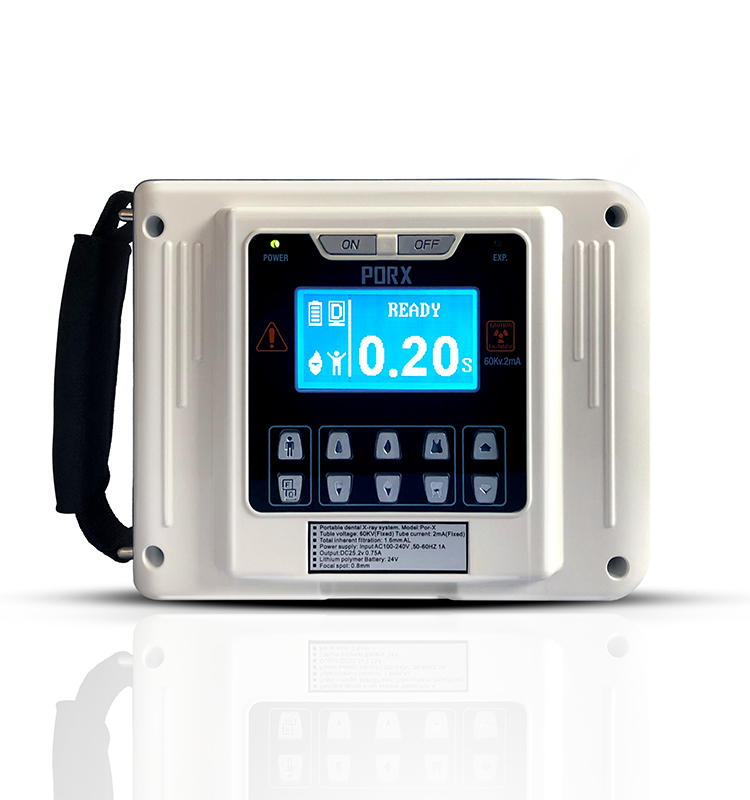

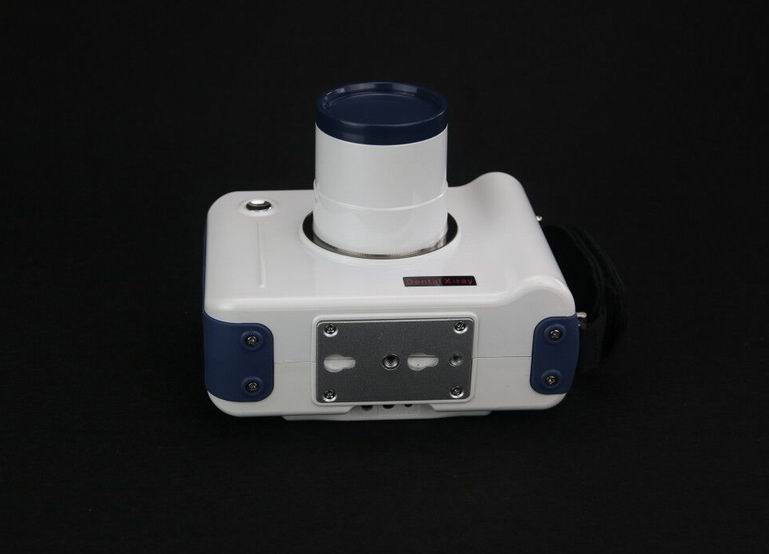

Basic technical specifications 1.1 Environmental ◇ Operation Temperature : 10 ℃ to 35 ℃ Relative humidity : 10% to 85% RH ◇ Storage and transportation Temperature :10 ℃ to 40 ℃ Relative humidity : 5% to 90% RH 1.2 Classification/Specificat
◇ Cable length of remote controller : 3000mm
1.4 X-ray control and generator
◇ Exposure time range : 0.01-1.6sec
◇ Maximum duty cycle : l: 60
◇ Maximum inherent filtration : 1.6mm Al
◇ Maximum output power: 120W nominal at 60kV, 2mA
◇ Generator rating : 2mA at 60kV±5%
◇ Leakage technique factors: 60kV, 2mA, 1.6sec
1.5 Collimator cone
◇ Minimum source to skin distance : 10cm, 20cm (Long Cone)
◇ X-ray field size and configuration : 6cm diameter circle.
◇ Shielding : lead - lined.
2. X-ray tube tank
2.1 Stationary anode x-ray tube
◇ Especially designed for dental X-ray unit
◇ Provided with an insulation cylinder (D-081B)
◇ This tube have focus 0.8mm, and are available for a maximum tube voltage
65kV.
◇ Installed in the same enclosure with the high tension transformer
GENERAL DATA
ELECTRICAL
Operating tube voltage 50 t0 65kV Max.
Focal spot 0.8mm
Max. Input energy 600W
MECHANICAL
Overall length 69mm
Max. Diameter 31mm
Target angle 20°
Inherent filtration At least 0.8mm Al equivalent at 50kV
X-ray coverage 354 x 354mm at SID 490mm
Weight 96g
Cooling method Oil immersed (600C Max.) and convection oil cooling
Tube holding Holding the glass envelop of the anode end and
cathode end, or the screw of the anode shank
MAXIMAM AND MINIMAM RATING
(At any time, these values must not be exceeded)
Max. Tube voltage 65kV
Max. Inverse tube voltage 75kV
Min. Tube voltage 50kV
Max. Tube current 19mA
Max. Filament current 2A
Filament voltage : At max. filament current 2.9 to 4.0V
Thermal characteristics :
Anode heat storage capacity 6.0 kJ (8.5 kHU)
Max. Anode heat dissipation rate 128 W (180 HU/s)
